SP4-WiSUN-GW-N/G

  • Rapid shutdown
  • Power optimization
  • Remote maintenance
  • Plant management

SUPPORTIVE DEVICE & PLATFORM

Hardware

  • Suitable for one single PV module
  • Compatible with all leading branded string inverters & hybrid inverters
  • MC4 interface, plug & play without barriers
  • IP68 for indoor & outdoor use
  • Integration in existing & new PV system
  • Work with SolarPilot zigbee gateway
  • Recommended for residential & small commercial scenarios
  • Compliant with TUV CE, RoHS, RED & RCM certificate

Software

  • Smart control, precise data analysis through APP and web portal
  • Quick network configuration between hardware & platform
  • Remote monitoring for efficient operation
  • Real-time data analysis and maintenance
  • 1000 plants management capability across multi locations

Applicable Scenarios

  • Shade
  • Multi-orientation
  • Stain
  • Attenuation loss
  • Snow effect
  • BIPV
  • Works with double-sided panels

Core strengths

  • Unique TinyML algorithm captures MPPT within 0.2s and improves 5~30% power output
  • Enable additional string connections up to 10%
  • Industrial-level zigbee solution ensures the highest frequency of data sampling, capturing data every other minute, to make remote system diagnosis more precise
  • Rapid shutdown within 10s eradicates the fire risk results from high voltage arc; quicker and safer

How to configure the system at different cases?

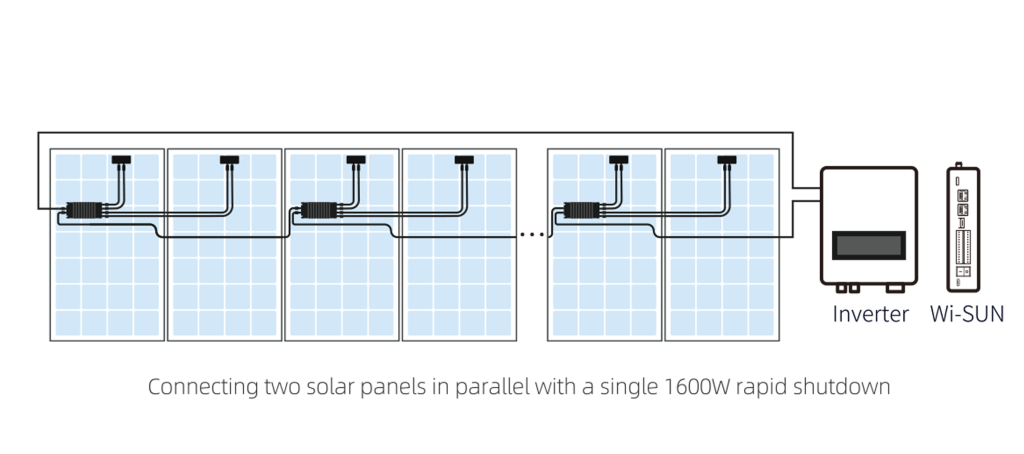

  • 1600W RSD + Wi-SU Gateway
    • 1600W Rapid Shutdown Connector : Wi-SUN Gateway = 300 : 1
    • Costdown solution for rapid shutdown function only.
    • Suitable for unshaded modules but need RSO compliance.

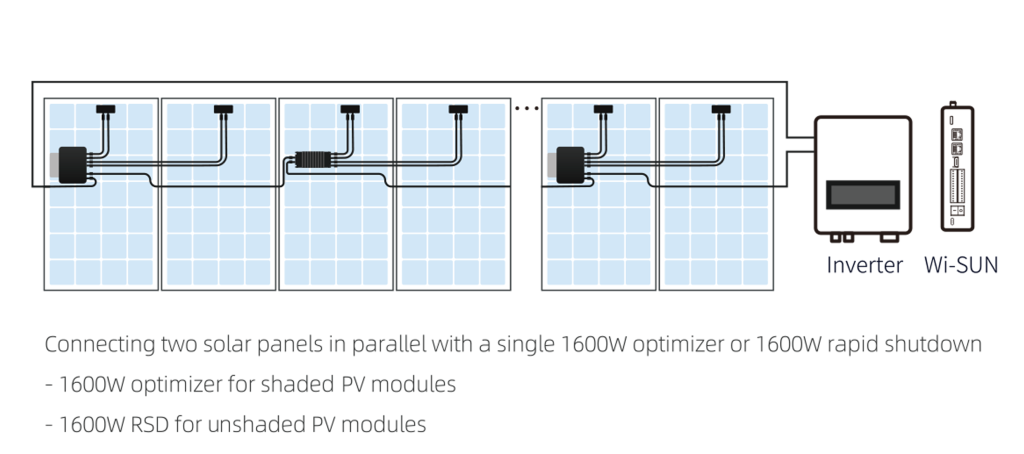

  • 1600W Optimizer + 1600W RSD +Wi-SUN Gateway
    • (1600W Optimizer + Shutdown Connestor) : Wi-SUN Gateway = 300 : 1
    • A combo solution for shaded & unshaded PV modules.
    • One APP & SaaS connecting all device data of optimizers & RSD.Real-time MLPE data monitoring and system management.

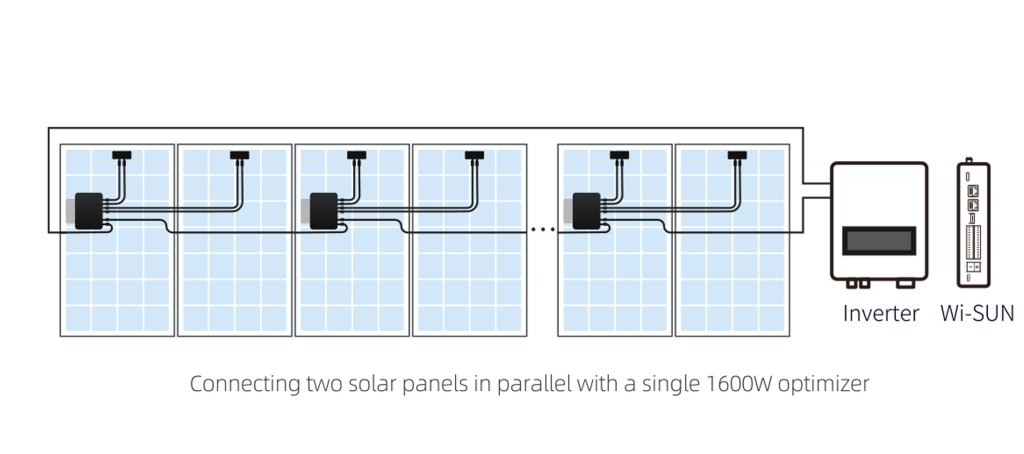

  • 1600W Optimizer + Wi-SUN Gateway
    • Optimizer : Wi-SUN Gateway = 300 : 1
    • Suitable for commercial building rooftop (large scale solar system) | like rooftop of hotel, hospital & factory workwhop etc.

Comparison of Parameter Sheets

Gateway SP4-wisun-GW-N/GSP1-zigbee-GW-W/G
Communicate with Optimizer/Rapid Shutdown
Communication Protocol WiSUN wirelessZigbee wireless
Max data transmission distance ≤500m(indoor), ≤1000m(outdoor)≤30m(indoor), ≤100m(outdoor)
Maximum number of connecting devices ≤300 pcs optimizers/rapid shutdown devices≤30 pcs optimizers
Configured Components
Reset button Reset button x 1Reset button x 1
Indicator light LED x 3LED x 2
Monitoring APP SolarPilot Energy APPSolarPilot Energy APP
Communicate with Cloud Computing Platforms
Wired Internet access RJ45x1, 100Mbps
Wireless Internet access WiFi | 4G
Number of antennas 2
Date sampling interval 1min (I/V/P) / 5min / 15 min1min (I/V/P) / 5min / 15 min
WAN RJ45x1 1000Mbps (WAN)
LAN RJ45x1 100Mbps (LAN)
HDMI 1080P
Console port USB-C
WiSUN 868MHz-Europe, 915MHz-North America
4G No 4G (model-N) / CAT1, SIM card (model-G)
CAN CAN x 1
DI DI x 4
DO DO x 2
Expand connections

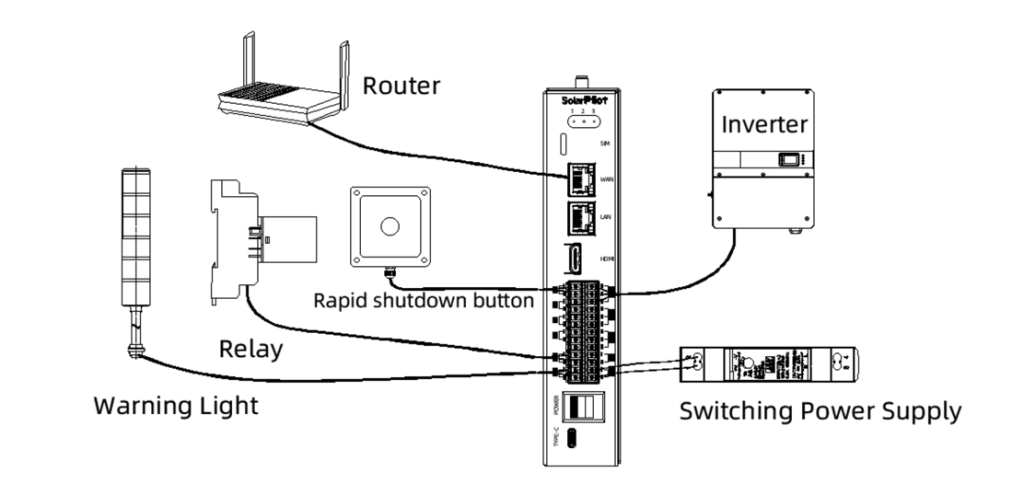

RSD button control mode I/O
RS485 connection COM x 3COMx1, 9600bps, Modbus-RTU
System Settings
CPU Quad core ARM Cortex-A53 @1.6 GHz
RAM 2G
Memorizer 8GB eMMC
OS system Linux 5.10.160
General Parameters
Dimension 190mm*84.8mm*38.7mm181mm*163mm*51mm
Net Weight ≤800g≤200g
Degree of protection IP 20IP 65
Storage temperature -40℃～70℃-40℃～70℃
Working temperature -20℃～55℃-20℃～55℃
Working humidity 5%～95%5%-95%
Working altitude ≤2000m≤2000m
Power supply DC 12VDC 12V
Power consumption ≤4W (N) ｜ ≤6W (G)≤4W
Installation method Fixed on DIN35mm guide railWall-mounted
Compatible optimizers SP4, SP5 seriesSP1, SP2, SP3 series
Others
Compliant standards CE, RoHS, REDCE, RoHS, RED
Recommended scenarios Commercial & industrial solar plantresidential rooftop, small commercial solar plant

DOWNLOAD

    SolarPilot-Datasheet-SP4-WiSUN-GW-N/G V2.0 SolarPilot-Datasheet-SP4-WiSUN-GW-N/G(VPP) V1.2
    SolarPilot-User Manual-SP4-WiSUN-GW-N/G V1.0
    SolarPilot-Quick Installation-SP4-WiSUN-GW-N/G V1.1
    SolarPilot-Limited Warranty-SP4-WiSUN-GW-N/G V1.1
