SP1-zigbee-GW-W

SUPPORTIVE DEVICE & PLATFORM

Hardware

Suitable for one single PV module
Compatible with all leading branded string inverters & hybrid inverters
MC4 interface, plug & play without barriers
IP68 for indoor & outdoor use
Integration in existing & new PV system
Work with SolarPilot zigbee gateway
Recommended for residential & small commercial scenarios
Compliant with TUV CE, RoHS, RED & RCM certificate

Software

Smart control, precise data analysis through APP and web portal
Quick network configuration between hardware & platform
Remote monitoring for efficient operation
Real-time data analysis and maintenance
1000 plants management capability across multi locations

Applicable Scenarios

Shade
Multi-orientation
Stain
Attenuation loss
Snow effect
BIPV
Works with double-sided panels

Product Advantage

Unique TinyML algorithm captures MPPT within 0.2s and improves 5~30% power output
Enable additional string connections up to 10%
Industrial-level zigbee solution ensures the highest frequency of data sampling, capturing data every other minute, to make remote system diagnosis more precise
Rapid shutdown within 10s eradicates the fire risk results from high voltage arc; quicker and safer

How to configure the system at different cases?

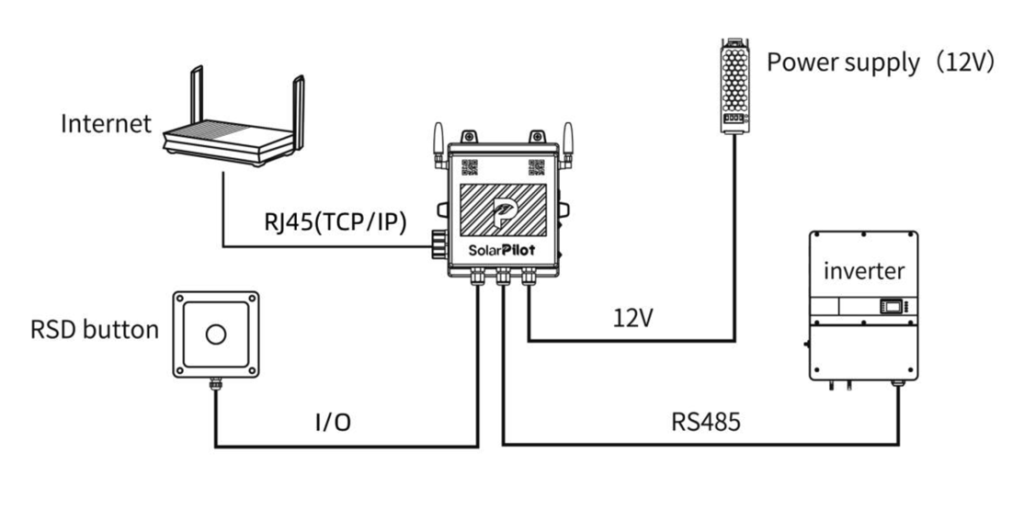

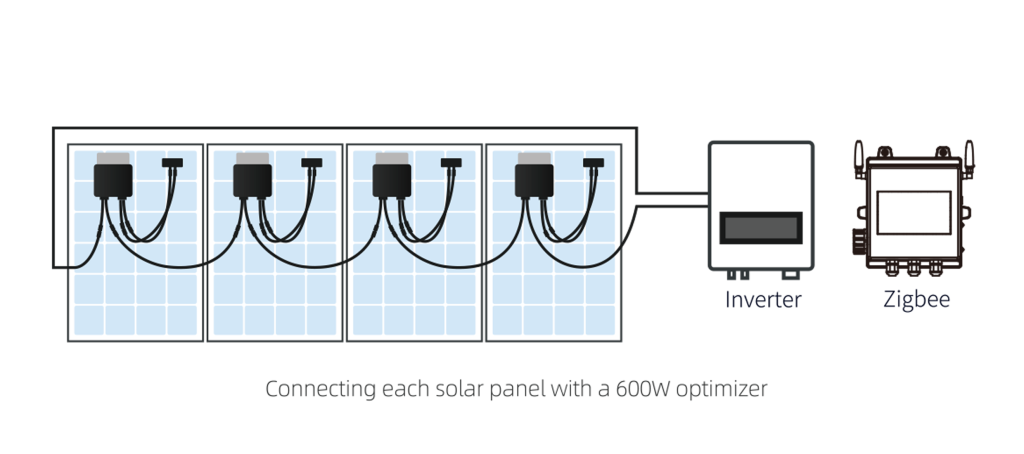

600W Optimizer + Zigbee Gateway
- 600W Optimizer : Zigbee Gateway = 30 : 1
- Suitable for residential & small commercial scenarios, like rooftop of house, restaurant, car port & barn etc.

Comparison of Parameter Sheets

Gateway	SP1-zigbee-GW-W/G	SP4-wisun-GW-N/G
Communicate with Optimizer/Rapid Shutdown
Communication Protocol	Zigbee wireless	WiSUN wireless
Max data transmission distance	≤30m(indoor), ≤100m(outdoor)	≤500m(indoor), ≤1000m(outdoor)
Maximum number of connecting devices	≤30 pcs optimizers	≤300 pcs optimizers/rapid shutdown devices
Configured Components
Reset button	Reset button x 1	Reset button x 1
Indicator light	LED x 2	LED x 3
Monitoring APP	SolarPilot Energy APP	SolarPilot Energy APP
Communicate with Cloud Computing Platforms
Wired Internet access	RJ45x1, 100Mbps
Wireless Internet access	WiFi \| 4G
Number of antennas	2
Date sampling interval	1min (I/V/P) / 5min / 15 min	1min (I/V/P) / 5min / 15 min
WAN		RJ45x1 1000Mbps (WAN)
LAN		RJ45x1 100Mbps (LAN)
HDMI		1080P
Console port		USB-C
WiSUN		868MHz-Europe, 915MHz-North America
4G		No 4G (model-N) / CAT1, SIM card (model-G)
CAN		CAN x 1
DI		DI x 4
DO		DO x 2
Expand connections
RSD button control mode	I/O
RS485 connection	COMx1, 9600bps, Modbus-RTU	COM x 3
System Settings
CPU		Quad core ARM Cortex-A53 @1.6 GHz
RAM		2G
Memorizer		8GB eMMC
OS system		Linux 5.10.160
General Parameters
Dimension	181mm163mm51mm	190mm84.8mm38.7mm
Net Weight	≤200g	≤800g
Degree of protection	IP 65	IP 20
Storage temperature	-40℃～70℃	-40℃～70℃
Working temperature	-20℃～55℃	-20℃～55℃
Working humidity	5%-95%	5%～95%
Working altitude	≤2000m	≤2000m
Power supply	DC 12V	DC 12V
Power consumption	≤4W	≤4W (N) ｜ ≤6W (G)
Installation method	Wall-mounted	Fixed on DIN35mm guide rail
Compatible optimizers	SP1, SP2, SP3 series	SP4, SP5 series
Others
Compliant standards	CE, RoHS, RED	CE, RoHS, RED
Recommended scenarios	residential rooftop, small commercial solar plant	Commercial & industrial solar plant
